In the case of Power Capacitors for DC Applications TDK offers different technology products depending on the application such as for standard ones, e-mobility (low LSI/ULSI HF), harsh environment (hermetically sealed) or for high partial discharge applications in power converters (resin top).

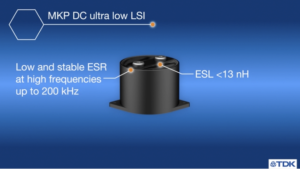

Low LSI / ULSI HF

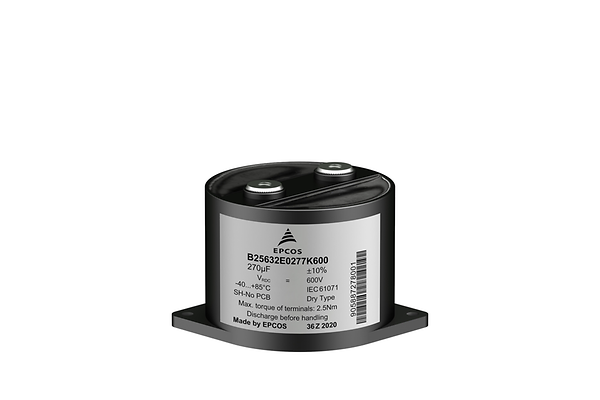

DC Link / Snubber capacitor in plastic can for low inductance applications
SERIES B2563
- For low inductance applications Ls <13 nH
- Voltage of 600 to 2000 V DC
- Rated capacitance of 20 to 400 µF
- Available with male and female terminals
- DC link for e-mobility, e.g. quick EV chargers
- Temperature up to 85 °C hotspot
- IEC 61071, GB/T17702, RoHs compliance, CE and UL94 compliant
BENEFITS
- ESL <12 nH possible
- Optimized for high frequencies
- DC link for e-mobility
other tdk/epcos products in stock
FILM CAPACITORS - POWER ELECTRONIC CAPACITORS

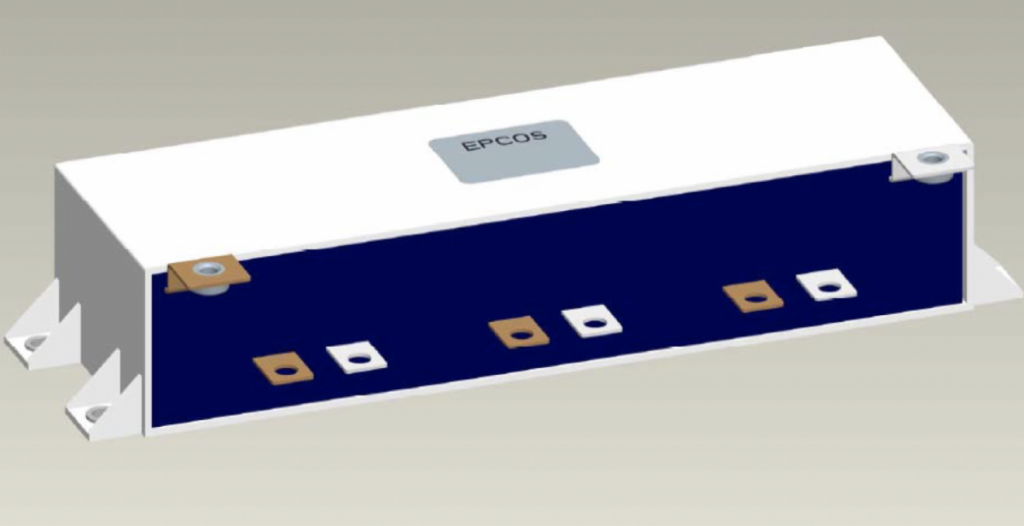

PCC series for Full HEV HybridPACK™2
B25655P4108K**1

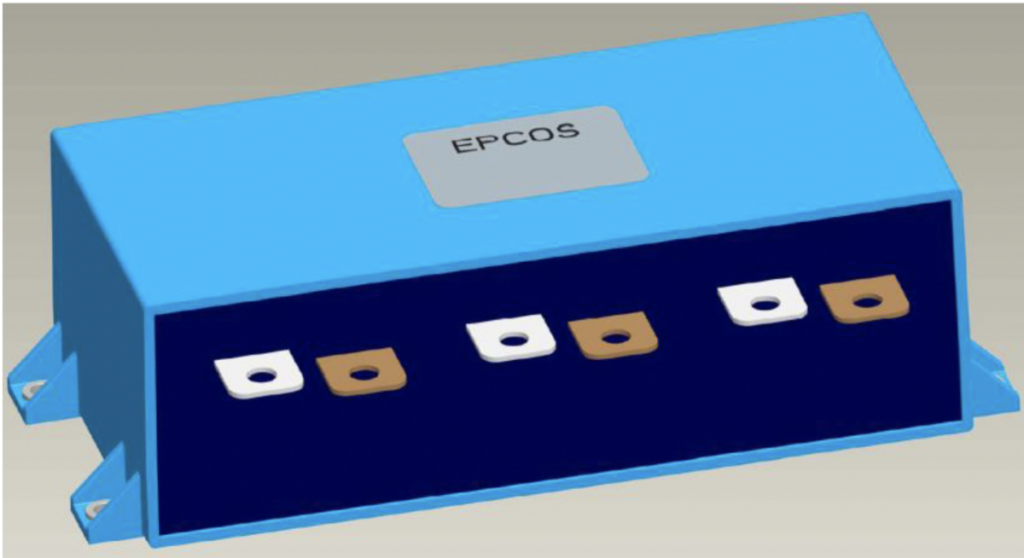

PCC series for Full HEV HybridPACK™2
B25655P4707K**1

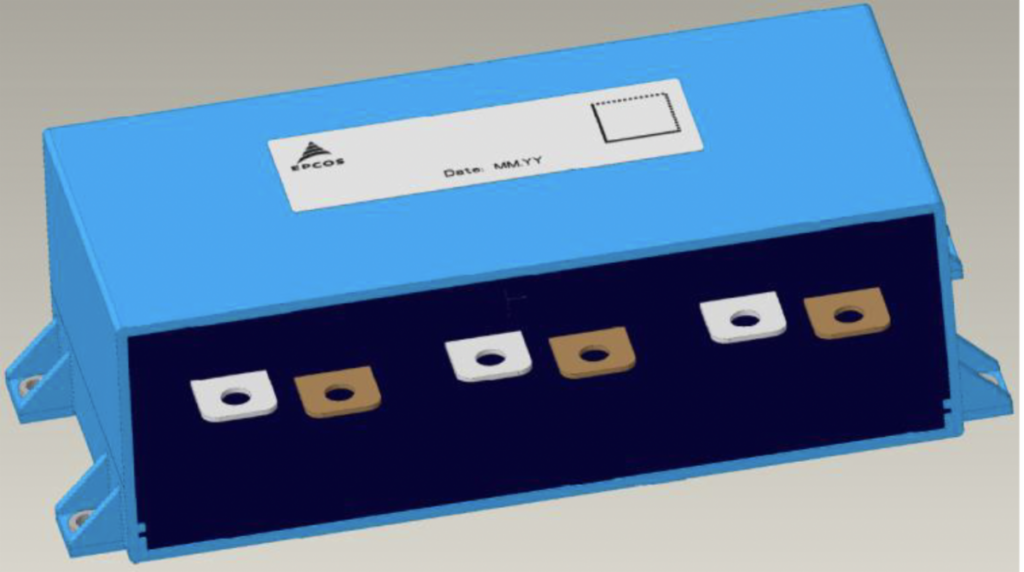

PCC, designed for Infineon HybridPACK™ Drive FSxxxR08A6P2B
B25655P5657K351
PCC series for Full HEV application
B25655P9127K151
